Diagnosis And Repair

Provides you with all the instruments required for the test and measurement of electronic components and PCBs. This module includes a Digital Oscilloscope, Arbitrary Waveform Generator, Universal Frequency Counter and a Universal I/O port.

Provides the necessary supply voltages to the unit under test. As it is controlled by the SYSTEM 8 software, the VPS can be switched on/off automatically and the required voltages can be modified within the TestFlow. The three output voltages are variable in both voltage and current.

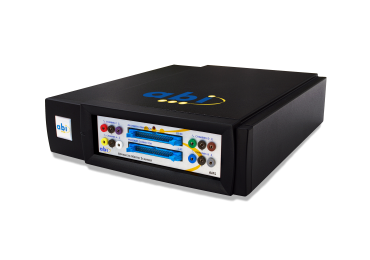

The Advanced Matrix Scanner, AMS, uses a novel approach to V/I signature testing, by varying the frequency of the test signal to observe the DUT’s response over a frequency range. This can lead to finding faults not detectable with other instruments. The AMS has 64 channels to speed up acquisition and to test high pin count devices as well as complete PCBs. Single channels can also be used for local analysis.

Analogue IC Tester is the answer to testing analogue devices. The key feature of the AICT is its ability to functionally test all common analogue ICs and discrete devices in circuit. It is also capable of testing all types of analogue and digital components by means of the well-known, power off V-I test technique with 24 analogue channels.

Advanced Test Module, ATM, is a solution designed for the test and diagnostics of all logic PCB assemblies, from single component testing in-circuit up to complete assembly functional checks. Powerful test combinations ensure the best fault coverage on PCBs or components and include functional, connections, voltage, thermal and V-I signature tests. A sophisticated but easy to use system with minimum user input required ensures that components and PCBs are tested efficiently and faults are detected rapidly.

Board Fault Locator, BFL, provides the user with the ability to functionally test all common digital ICs in and out-of-circuit. A combination of industry recognised test techniques provides a high level of fault coverage. Additional tools are provided, like a Digital IC Identifier. The BFL can be upgraded to include up to 256 channels, in 64 channels steps.
